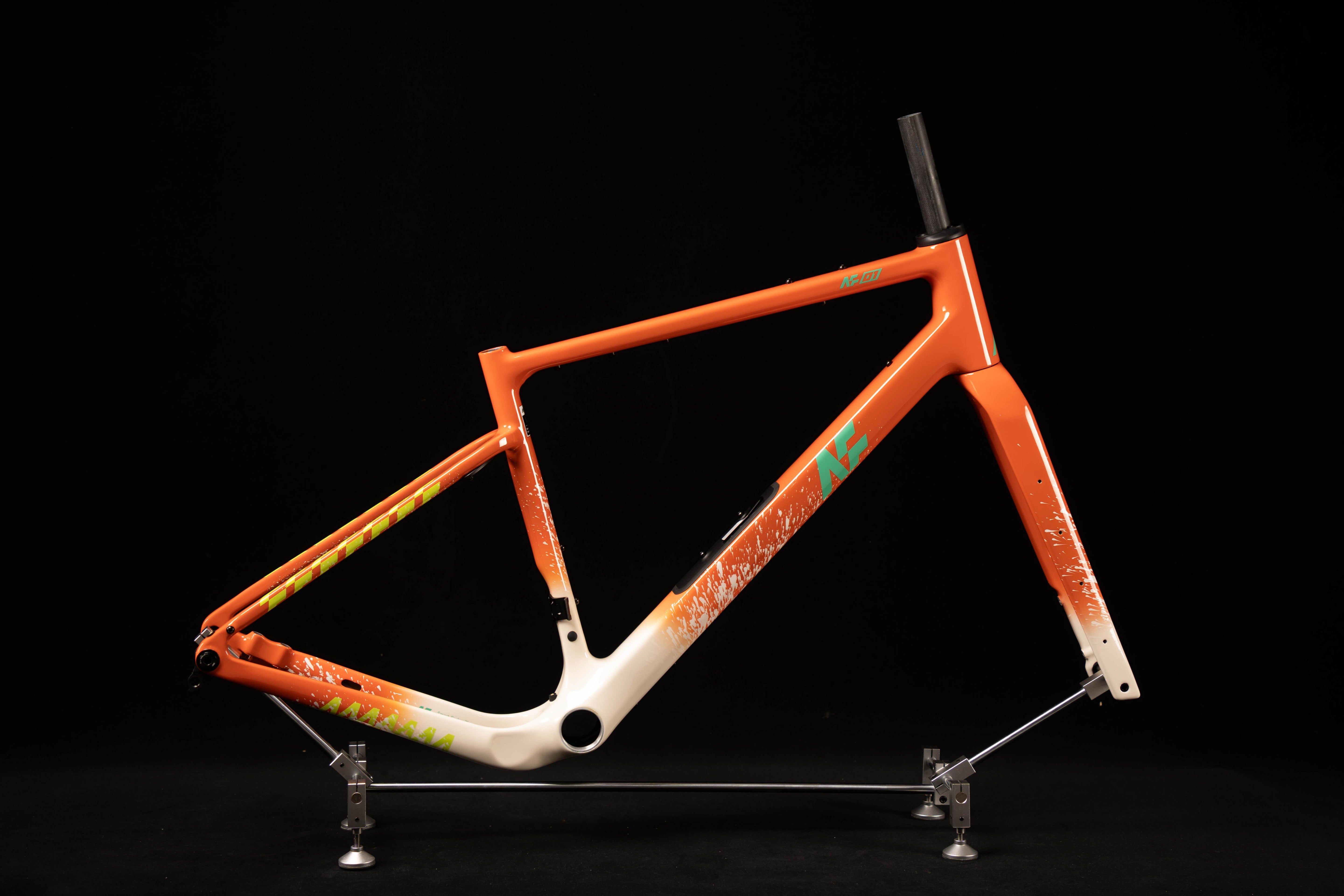

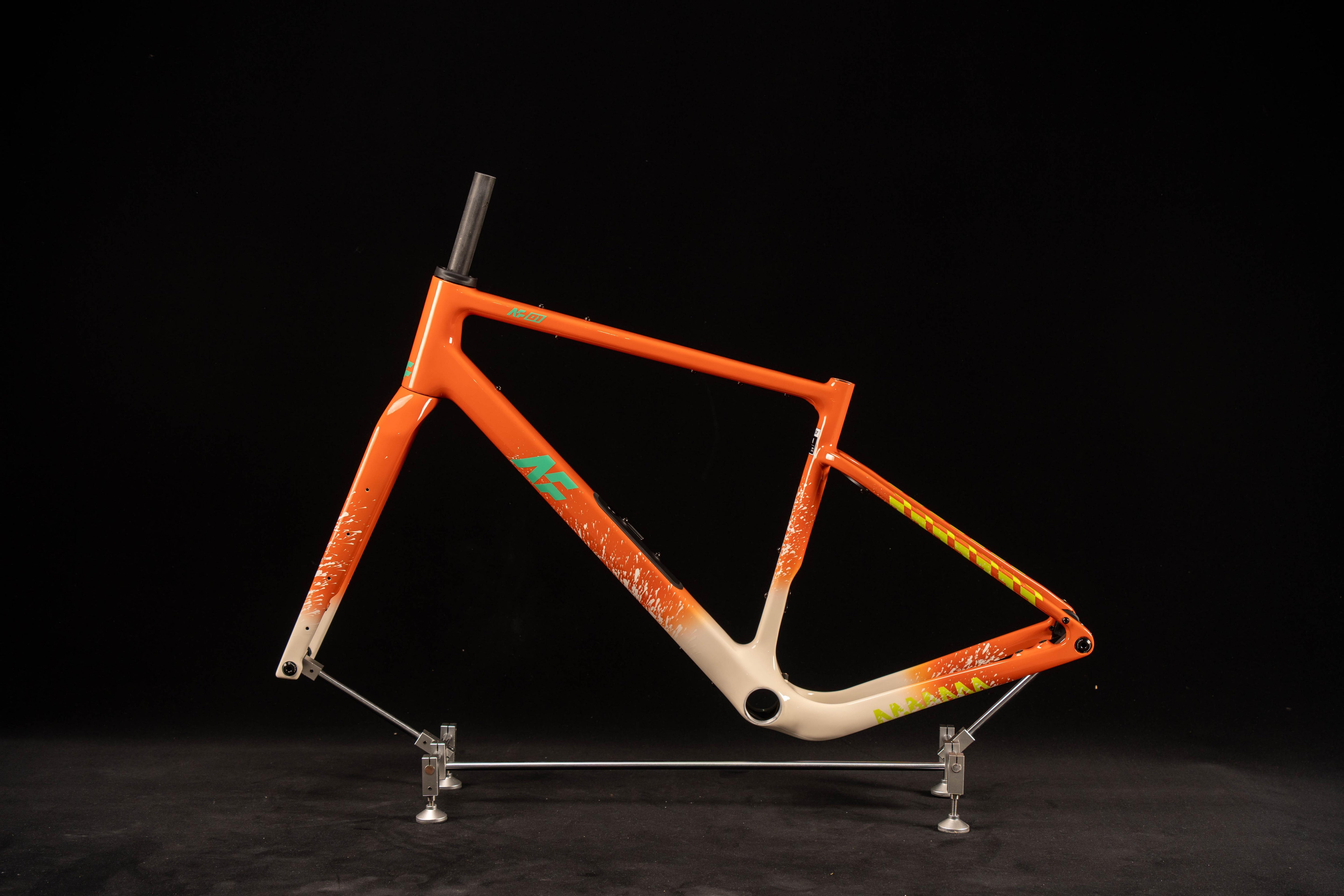

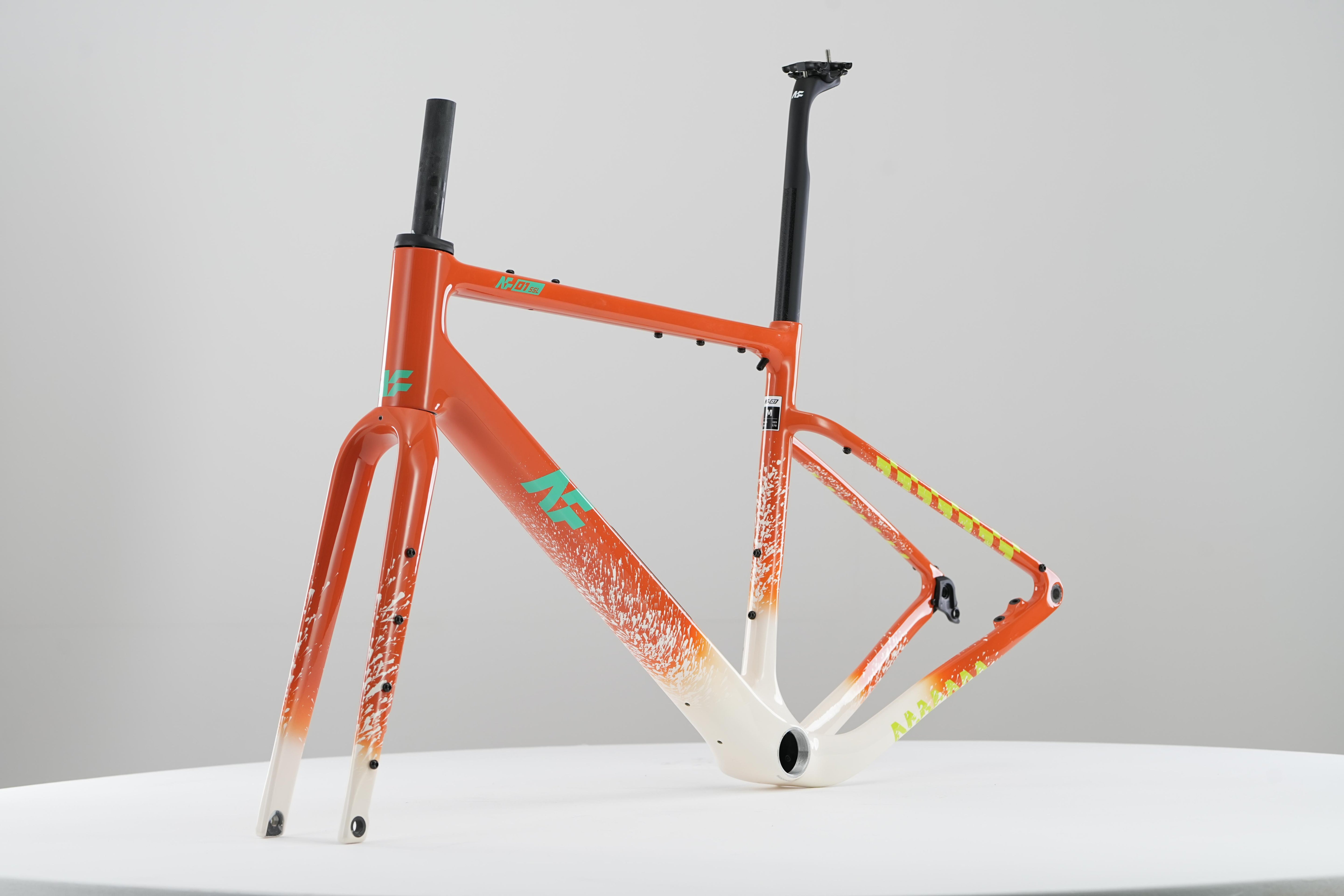

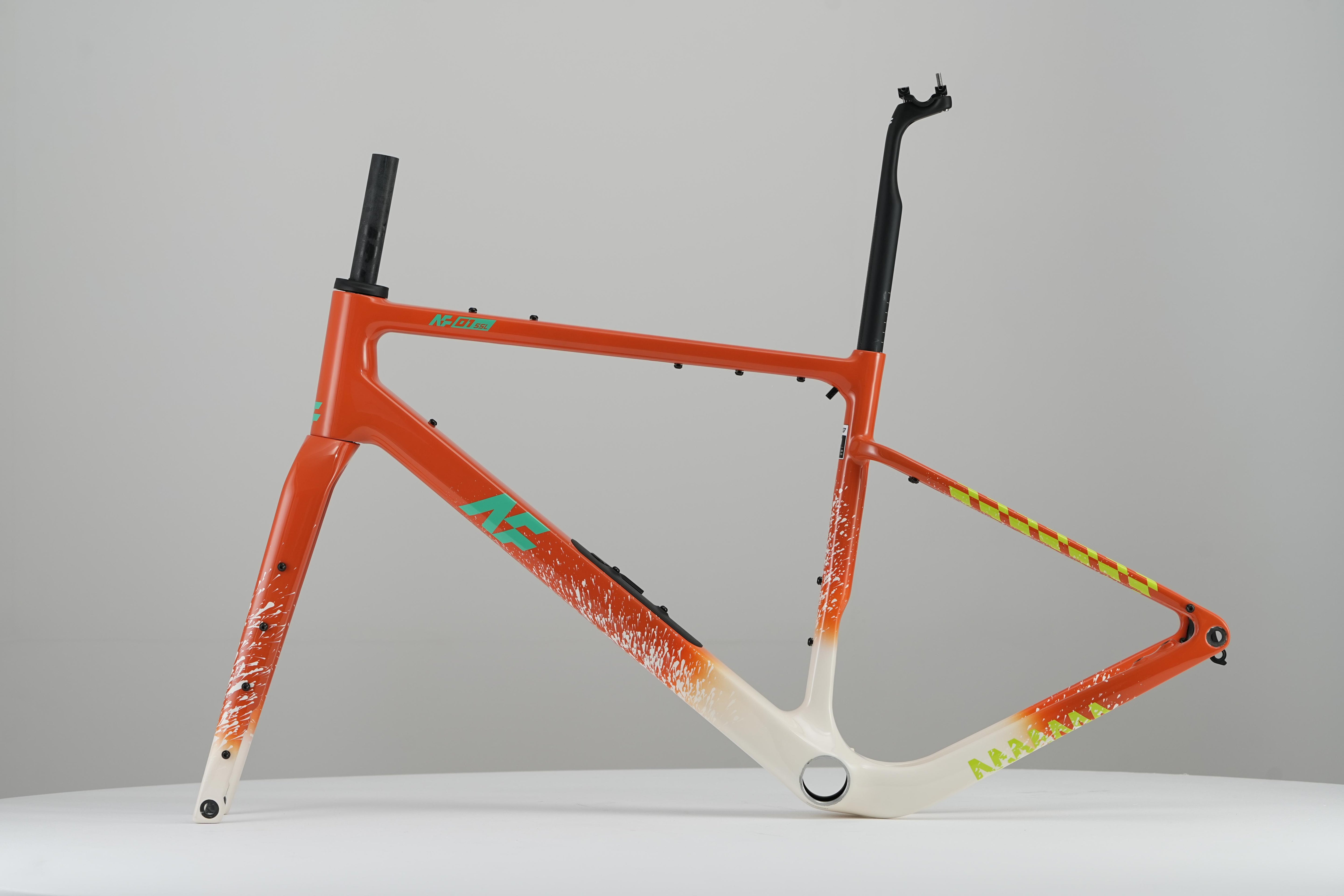

AF01 Mud
AF01 Mud
Specs
- Model No:AF01 SSL/AF01
- Material:AF01SSL:T1000, M65 Carbon Fiber
AF01:T800,M46 Carbon Fiber - Use:Gravel / Adventure / Bikepacking / Long Distance
- Frame Weight(Size M):
AF01SSL:830g ±50g (Excl. hardware & painting)
1080g ±50g (Incl hardware & painting)
AF01:980g ±50g (Excl. hardware & painting)
1200g ±50g (Incl hardware & painting) - Fork Weight:
AF01SSL:435g ±15g (Excl. hardware & painting)
470g ±15g (Incl hardware & painting)
AF01:485g ±15g (Excl. hardware & painting)
520g ±15g (Incl hardware & painting)
- Seat Post:Diameter27.2 mm
- BB Type:T47-86
-
Brake Mount:Flat Mount
-
Headset Size:1-1/2"* 1-1/2ACR
-
Axles (F/R):
F:12*100mm AT, length 121,P1.5
R:12*142mm AT,length 172mm,P1.0
-
Max tire size:50C
-
Max Chainring:46T / 50-34T
-
Rotor Size:F160 mm / R160 mm
-
Max Rider Weight:120 kg
-
Warranty:5 Years
Innovation & Technology

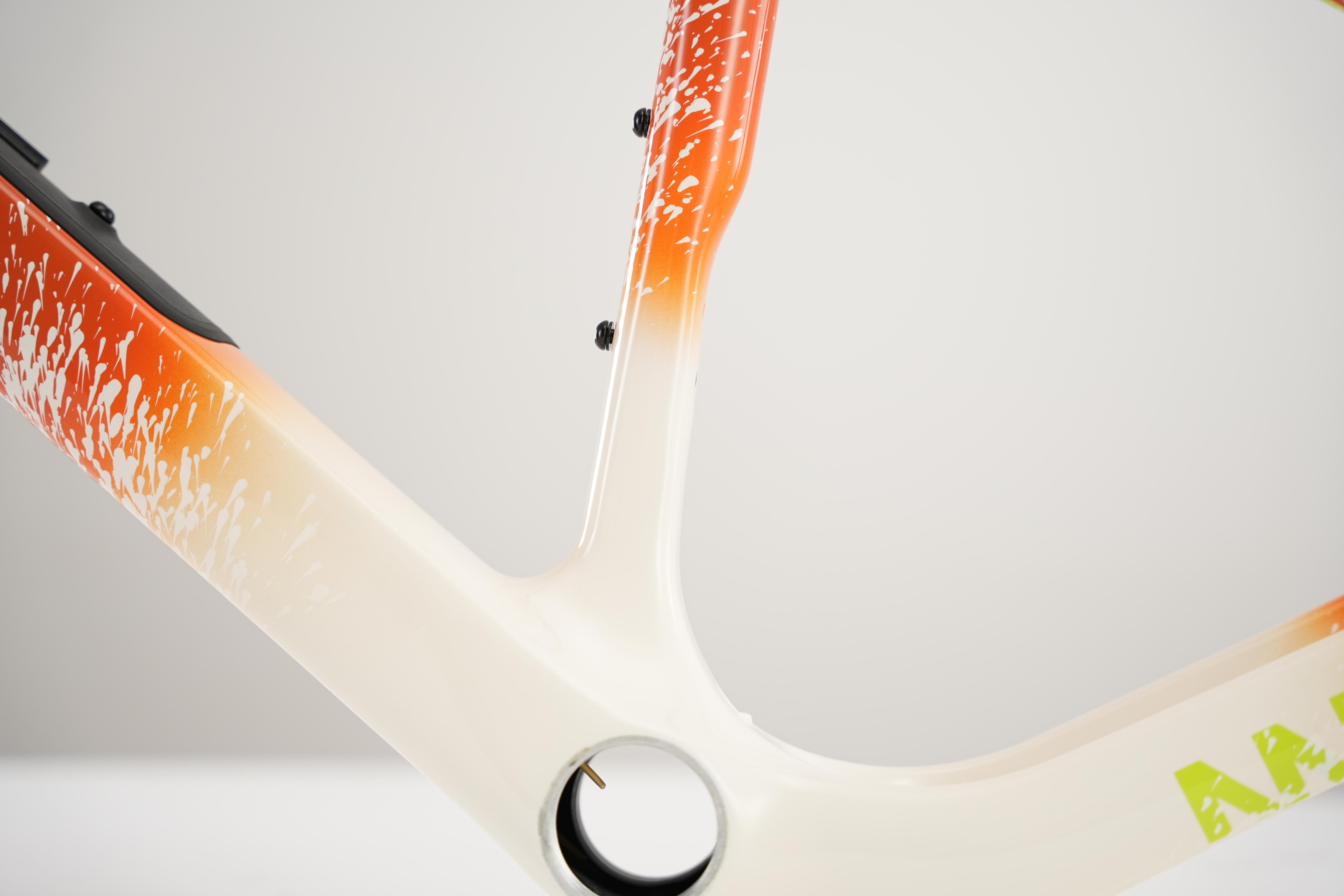

One-Piece Molding
Our advanced one-piece molding process creates a seamless frame architecture, delivering the ultimate balance of stiffness, safety, and high-performance speed
Reinforced Precision
Our forks feature precision-engineered aluminum inserts embedded directly into the carbon structure. This reinforcement provides a rock-solid foundation for mounting, preventing wear and ensuring your setup stays secure ride after ride
Add a title or tagline
SRAM Universal Derailleur Hanger (UDH) standard
Integrated Seat Clamp
Hassle-Free Adjustment.Engineered for convenience, our integrated clamp features an anti-drop mechanism that prevents internal components from falling into the seat tube. Enjoy smooth, easy height adjustments without the risk of parts getting stuck or lost.
Comfort-Optimized Seatpost
Engineered to absorb road buzz and sharp impacts, this seatpost features a controlled flex profile that significantly reduces the transfer of vibrations to the saddle. Experience a smoother ride that keeps your body fresh during long-distance adventures
Down Tube Storage Vault
Engineered with a specialized rubberized treatment, our storage box ensures a snug, rattle-free fit even on the roughest trails. The precision-sealed cover keeps your gear bone-dry and protected from road spray, no matter the conditions.
